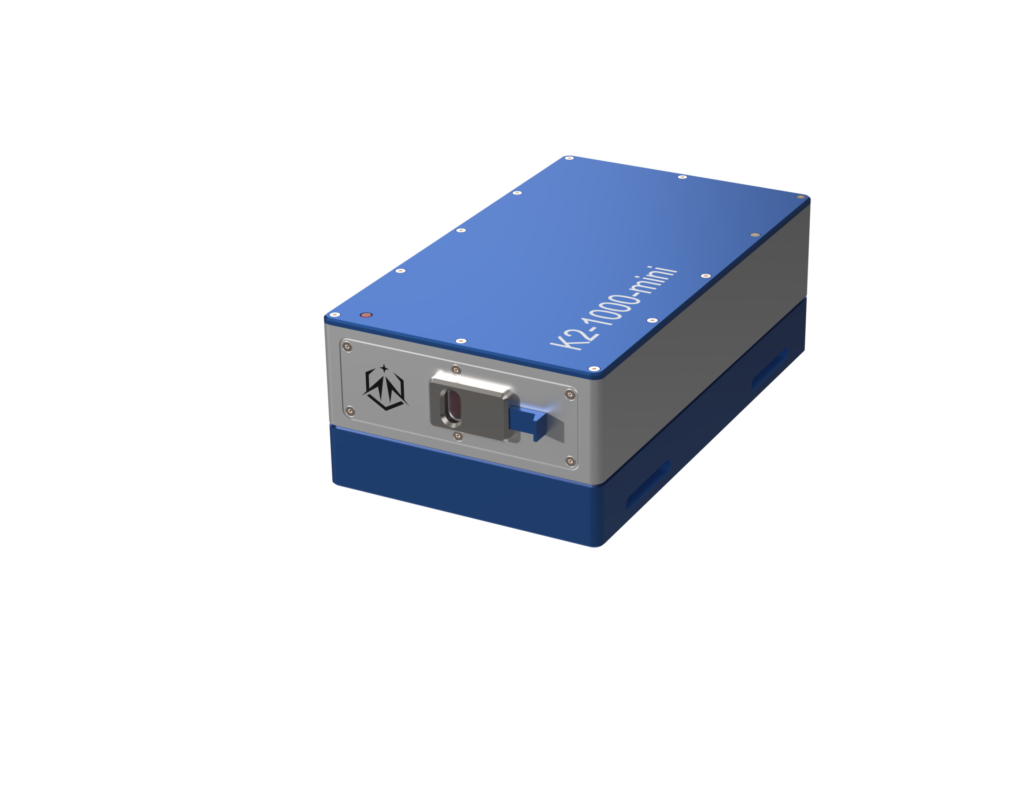

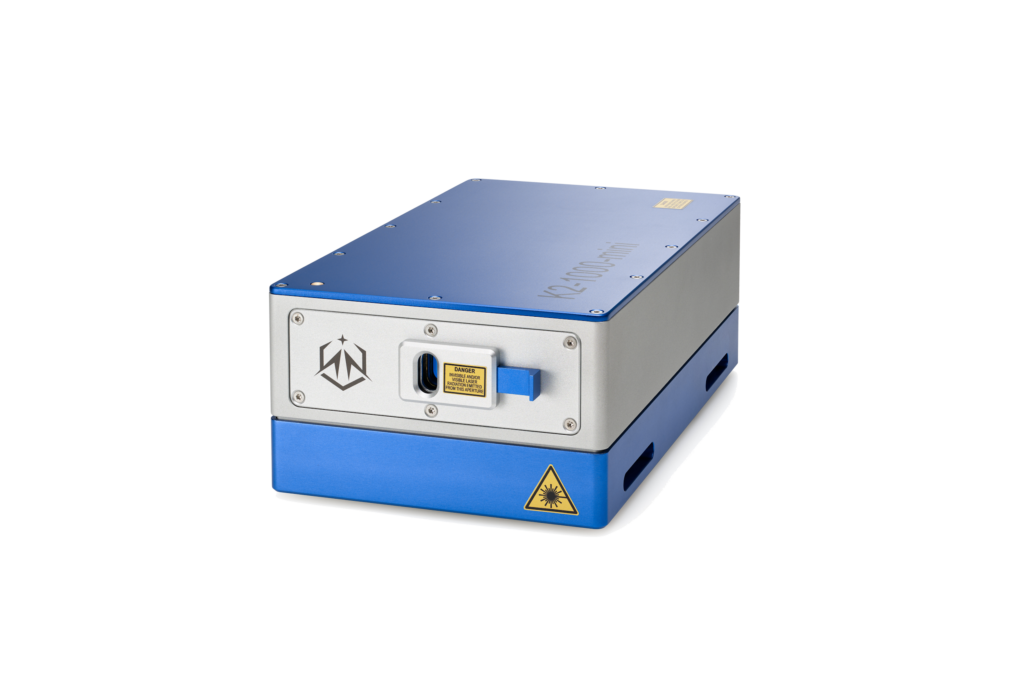

K2-1000-mini

Compact and powerful ultralow-noise laser.

Fully integrated laser ready for applications

  • 1 GHz repetition rate
  • >1.5 W per beam
  • <200 fs pulse duration
  • Sub-cycle relative timing jitter
  • Ultra-low relative intensity noise
  • Ultra-compact system design
  • Dual-comb modelocked option
DESCRIPTION

K2-1000-mini is a powerful ultralow noise turn-key laser for OEM integration. The laser is available as a modelocked femtosecond light source or as a dual-comb modelocked light source, producing two pulse trains from the same cavity (option). This laser is ideal for optical frequency comb applications, precision ranging, gas sensing, pump-probe as well as traditional laser oscillator applications, such as two-photon microscopy, amplifier seeding, and timing distribution.

OPTIONS
  • Wavelength options (inquire)
  • Fiber coupled output
  • Lower power consumption option
  • Broadband configuration
APPLICATIONS

Multi-species
gas sensing

Time-resolved
spectroscopy

Nonlinear
microscopy

Precision
ranging

We strive to excel in performance. Specifications can change – please inquire for the latest model.

Laser specifications

Power per comb>1.5 W
Pulse duration<200 fs, clean sech2 pulses, <100 fs option available
Repetition rate1 GHz
Pulse energy>1.5 nJ
Center wavelength1050 +/- 20 nm
Beam quality factor M2<1.1
Beam ellipticity<10 %
Timing-jitter PSD (fs2/Hz)<0.01 fs2/Hz for frequencies >1 kHz
Individual comb RIN<-160 dBc/Hz for frequencies >1 MHz

Special wavelength options

Center wavelengthPower per comb
1050 nm (default)> 1.5 W
1450 nm>200 mW
1550 nm>500 mW
1645 nm>500 mW
2400 nm>400 mW
3300 nm>100 mW

Dual comb specifications (option)

Repetition rate differencetunable to more than +/- 100 kHz
Relative timing noise<10 fs [1 kHz, 100 kHz]

Controls

Repetition ratefrep actuation via piezo 0 – 150 V (option)
Repetition rate differenceΔfrep actuation via piezo 0 – 150 V and coarse via motor (if applicable)
Power modulationPump diode current modulation capability for fCEO locking

Physical dimensions

Laser head (L x W x H)240 x 140 x 85 mm3 (all-in-one system)
Beam output height60 mm on (W) side

Requirements

Operating temperature15 – 30 ºC with <25°C baseplate (contact cooling)
Relative humidity<70% (non-condensing)
Power consumption<100 W
Electrical requirements24 VDC, 5 A
